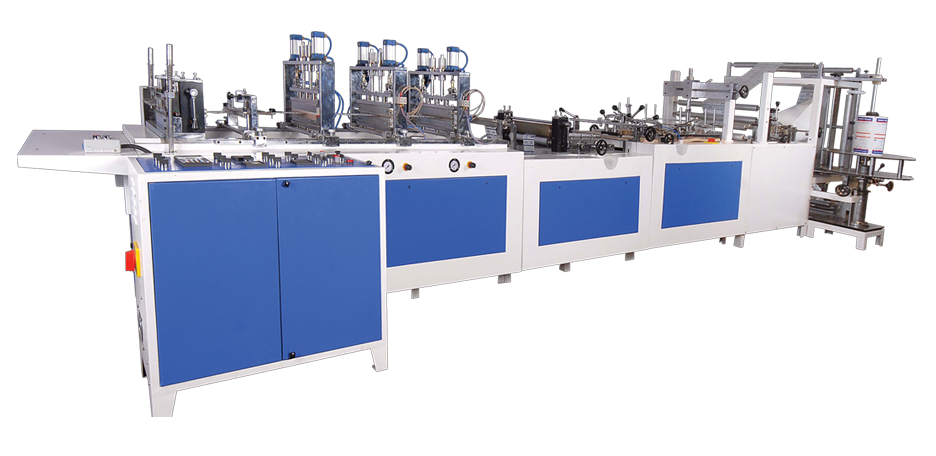

| TECHNICAL SPECIFICATION Centre Seal Cum Three Side Seal Machine |
|
| NUMBER OF STATION [ CUTTING ] | ONE |
| NUMBER OF STATION [BOTTOM SEAL] | TWO |
| NUMBER OF STATION [SIDE SEAL] | TWO |
| NUMBER OF STATION[CENTRE SEAL] | ONE |
| NUMBER OF STATION[COOLER] | ONE |
| MACHINE LENGTH | 5950 MM [APROX] |
| MACHINE WIDTH | 1950 MM [APROX] |
| MACHINE HEIGHT | 2150 MM [APROX] |
| MINIMUM POUCH SIZE | LENGTH 50 MM X WIDTH 60 MM |
| MAXIMUM POUCH SIZE | LENGTH 500MM X WIDTH 300MM |
| MAXIMUM WEB SIZE | 620 MM |
| MAXIMUM MACHINE SPEED -12+ 40 Micron | 120 PCS/MIN[FOR 200 MM] |
| UNWIND DRIVE 2 HP VFD | SYNCHRONISED TO MAIN DRIVE |
| COOLER FUNCTION | PNEUMATIC * |
| CUTTER FUNCTION | PNEUMATIC * |
| SEALER FUNCTIO [ BOTTOM] | PNEUMATIC * |
| MACHINE COLOR | VIP BLUE & SWAN WHITE |
| WEIGHT OF MACHINE | 2000 KGS. [ APROX] |
| SERVO MOTOR | 7.15 NM |
| UNWIND MOTOR | 2.0 HP. |
| ELECTRICAL LOAD | 18 K.W. |
| SEALING AREA [BOTTOM SEAL] | 10 & 15 MM [ WITH MACHINE] |
| SEALING AREA [SIDE SEAL] | 5-15 MM |
| SEALING AREA[ CENTRE SEAL] | 10-20 MM |
FEATURES
• Centre seal system
• Three side seal system
• Double web system *
• Hole punch system *
• Tape attachment *
• High speed servo driven
• Guesset system
• Variable sealing area
• Multi-ups pouch *
• Perforation system *
• Zipper attachment *
• Automatize station moving system
• Touch screen interface for easy operation
• High performance advance PLC control
• Double we top - bottom registration *
• Shape pouch system *
• Web aligner system *
