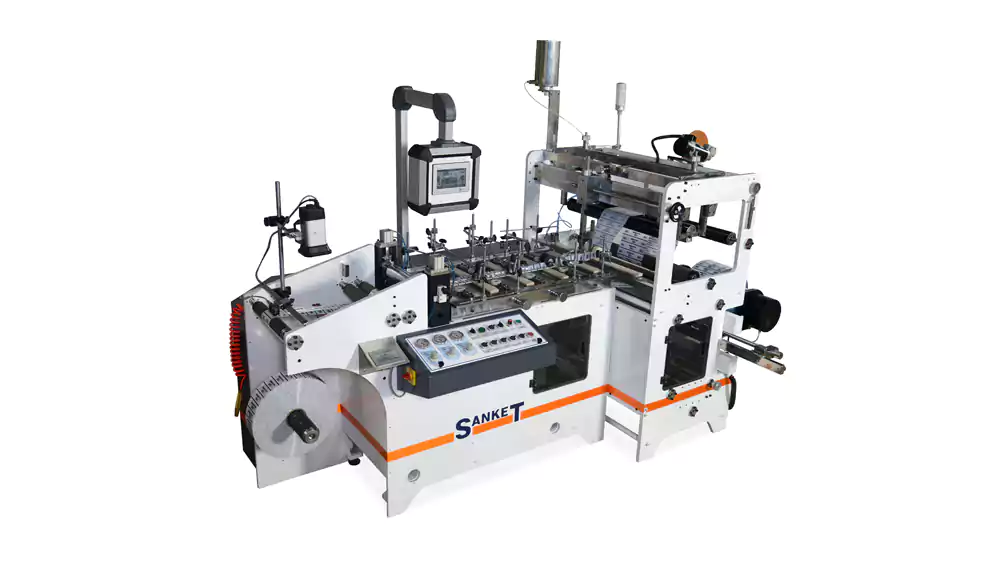

Gluing n Rewinding ( Top End Variant )


Gluing and rewinding machine is designed for centre as well as off centre gluing of PVC or PET shrink labels and rolls





Gluing n Rewinding ( Top End Variant )





TECHNICAL SPECIFICATION
GLUING n REWINDING
Minimum web width 60mm
Maximum web width 610mm
Minimum label width 30mm (tube form)
Maximum label width 300mm (tube form)
Maximum machine speed 0-200 meters/min
Main drive A.C MOTOR+INVERTER
Unwinding Tension control Magnetic powder brake with load cell auto controller
Rewinding Tension control Servo Base Automatic Incremental
Main controller Plc based 7 " touch screen
Web aligner system Stepper actuator with FMS or E+L sensor


FEATURES

• Power brake with load cell auto controller for unwinding
• Web aligner system
• Auto tension servo rewinding system
• Touch screen interface for easy operation
• Perforation unit (vertical)
• Air expanding shafts for immediate changeover


OPTIONAL

• AG-automatic gluing flow control system
• Inspection features - Bubble burst glue detection system with stroboscope and sensor for web    inspection
• Shaft less unwinder unit
• Auto slicer turret system for rewinding unit
• Online tape attachment system
• Any other features as per requirement
