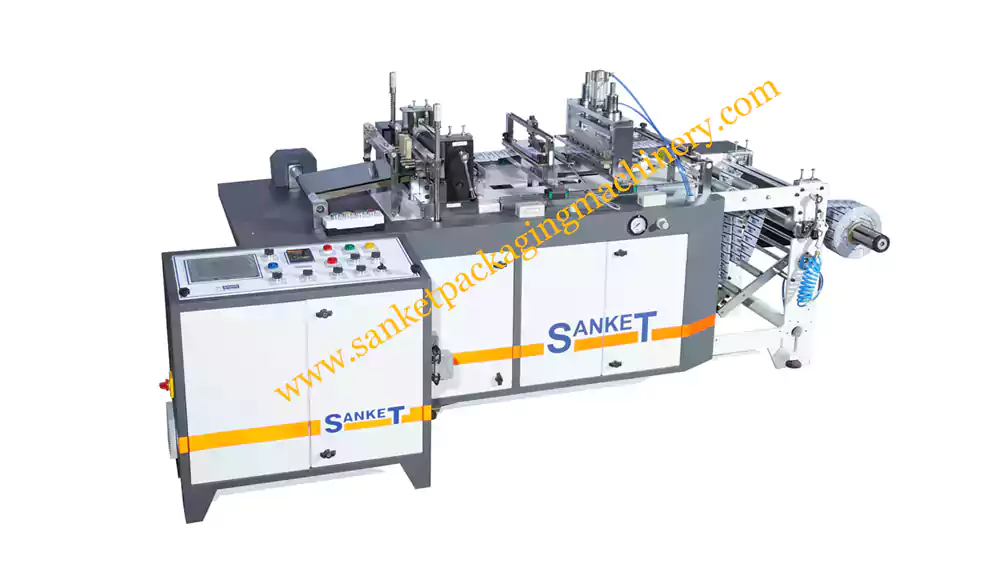

Cut-To-Length Machine ( PVC Label Cutting Machines) - CB300


Cut to length machine is a high speed shrink label cutting machine with superior built quality, Maintenance free design and best in class accuracy .It is also used for paper sheet cutting, sticker cutting, foil roll cutting.
Cut-To-Length Machine ( PVC Label cutting machines)





TECHNICAL SPECIFICATION
CUT TO LENGTH MACHINE
Minimum label size L 30mm x W 30mm
Maximum label size L 750mm x W 305mm
Maximum web size 305mm
Machine speed 370 Pcs/min (For 50mm length size)
Main motor 2 H.P A.C. MOTOR + INVERTER
Main nip motor Servo 7.15Nm
Unwind motor 0.5 H.P A.C motor
Conveyor motor 0.25 H.P PMDC GEARED
Perforation function Pneumatic
Cutter function Mechanical
Electrical load 3.5KW
Station moving system Manual rack and pinion


FEATURES

• High speed servo driven
• Microprocessor base controller
• Photocell control for print work
• Easy to operate
• Maintenance free


OPTIONAL

• Horizontal perforation Unit
• Air expanding shaft
