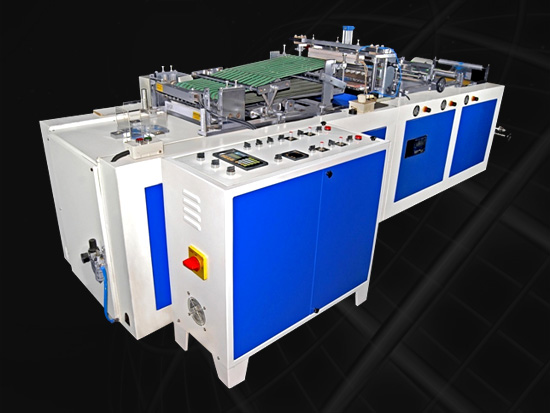

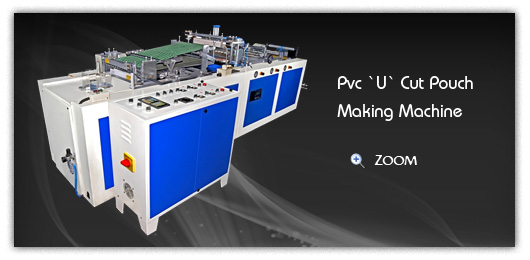

PVC `U` Cut Pouch Making Machine

Features
High Speed. Easy Operation. Maintenance Free. Provision for perforation system. 100% Accuracy of Label Size.	Servo Motor Driver. Micro Processor base controlled System. Photo Cell Control To Print Mark Minimum Wastage of trim area

Technical Specification
Number Of Station [ Cutting ]	One
Number Of Station [Perforation]	One *
Minimum Web Width	50 MM
Maximum Web Width	350 MM
Machine Length	3350 MM
Machine Width	815 Mm
Machine Height	990 Mm
Minimum Pouch Size	Length 70 MM X Width 40 MM
Maximum Pouch Size	Length 450 MM X Width 350 MM
Material To Be Run	40-100 Micron PVC / 70-120 Micron Multi Layer LDPE / HM
Maximum Machine Speed	55-90 Pcs/Min [For 200 MM Length]
Main Drive	One Common Motor With Gearbox
Unwind Drive	Synchronised To Main Drive
Perforation Function	Pneumatic *
Sealer Function	Mechanical
Cutter Function	Pneumatic System
Machine Color	Vip Blue & Swan White
Weight Of Machine	1450 Kgs. [Aprox]
Main Motor	2.0 H.P.
Servo Motor	4.8 Nm
Colour Mark Sensor	Sun X or Sick Make
Conveyor Motor (Geared)	0.5 H.P. 01 No.
Unwind Motor	0.5 H.P. 01 No.
Heater	4.25 K.W.
( * ) Optional Attachment
