* TECHNICAL SPECIFICATION *

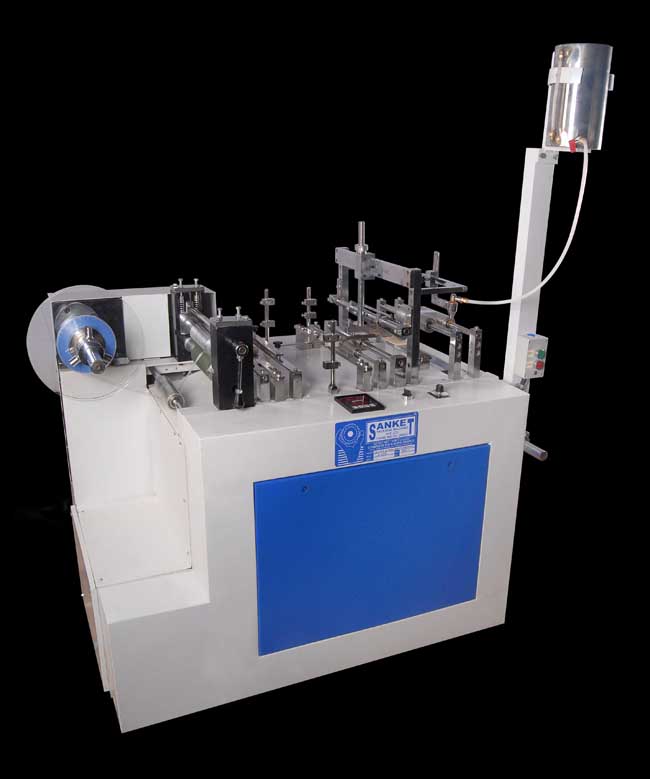

GLUING & REWINDING MACHINE[SMALL LABEL] |
| NUMBER OF STATION [UNWIND] |
ONE |
| NUMBER OF STATION [PERFORATION] * |
ONE * VERTICAL |
| NUMBER OF STATION [REWINDER ] |
ONE |
| MINIMUM WEB WIDTH |
40MM |
| MAXIMUM WEB WIDTH |
150 MM |
| MACHINE LENGTH |
2150 MM [Aprox] |
| MACHINE WIDTH |
950 MM [Aprox] |
| MACHINE HEIGHT |
1625 MM |
| MINIMUM LABLE WIDTH |
16 MM [TUBE FORM ] |
| MAXIMUM LABLE WIDTH |
70 MM [TUBE FORM ] |
| MAXIMUM MACHINE SPEED |
50 METERS/MIN. |
| MAIN DRIVE |
3 PHASE AC. MOTOR |
| UNWINDING TENSION CONTROL |
BRAKE- MECHANICAL |
| REWINDER TENSION CONTROL |
CLUTCH - MECHANICAL |
| SPEED DISPLAY |
DIGITAL PROG.COUNTER |
| MACHINE COLOR |
SWAN WHITE AND VIP BLUE |
| WEIGHT OF MACHINE |
850 KGS. [APROX] |
| MAIN MOTOR A.C.3 PHASE |
2.0 HP. [EMPIRE /HINDUSTAN] |
| SPEED CONTROLLER |
2.0 HP.VFD.[DELTA MAKE] |
| ELECTRICAL LOAD |
2.0 KW. |
| [ * ] Optional Attachment |
